HOW TO CHOOSE FLOORSTANDING SPEAKERS?

Name: APERTURA ADAMANTE FLOORSTANDING SPEAKERS
Brand: APERTURA
SKU: 02
Price: 1000 IRR
Availability: InStock
Rating: 5 (1000 reviews)

This new model uses the Apertura very specific cabinet shape: two curved sides of different length and no parallel front and back panels. ...

Piano black (High gloss)

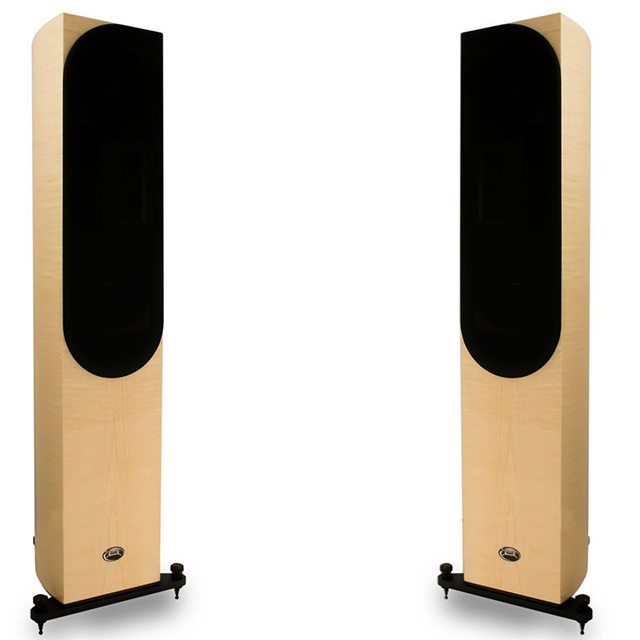

Maple High Gloss

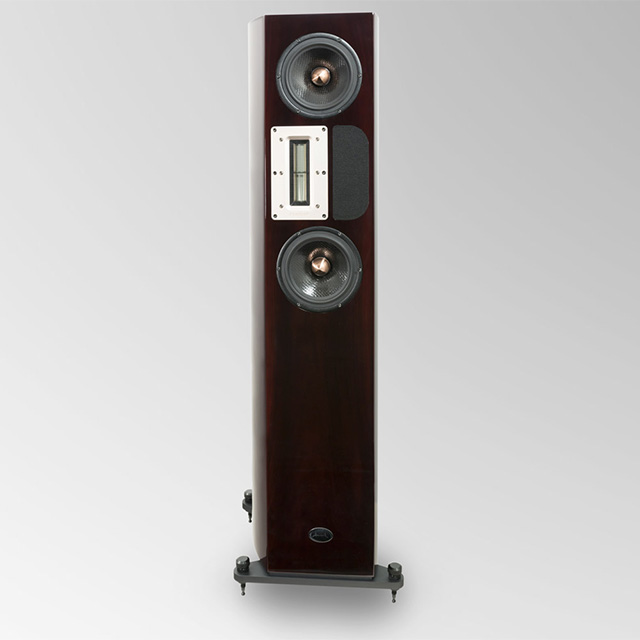

Rosewood High Gloss

APERTURA ADAMANTE
FLOORSTANDING SPEAKERS

Derivered from the experience gained on ENIGMA, Apertura is proud to introduce ADAMANTE.

ADAMANTE is the missing link between the ONIRA and the ENIGMA mkII. This speaker combined in a compact design two 6.5” mid-woofers like on ONIRA, with the bigger ribbon tweeter available, first seen on ENIGMA.

Overview Specs Award Downloads

INVENTIVE SPEAKER

For ADAMANTE the challenge was to obtain in the most reduced form factor, performances closest to ENIGMA ones. We think we have succeeded.

Even if volumes are very closed, ADAMANTE is slightly smaller than Onira and should make integration in most modern rooms easier. Obviously, this new model us the same special cabinet shape as our other models: two curved sides of different length and no symmetrical faces. This choice is dictated by cosmetic and technical issues: The heterogeneous nature of the different panels (size, radius, angle, length), imply a non –uniform resonance distribution and a reduced sound radiation for the most excited ones.

panels consist of multiple thin layers of high density MDF

Enclosure panels consist of multiple thin layers of high density MDF, glued together, and pressure molded to reach final thickness of 28 to 44mm. This sandwich structure allows to break and attenuate vibration waves inside the material. The aim is to drastically improve cabinet damping. The laminar structure is formed around a complex framework of eight heavy bracing panels.

structure-borne noise

To optimize the dispersal of structure-borne noise, the ADAMANTE enclosure stands on its central cone positioned on the axis of the center of gravity. The same device is used on all our models starting with the Armonia. The four other spikes are for stability only.

Mechanical inertia is mandatory for every high end speakers. For this purpose we use a steel coupling plate of 10mm to fasten front and back metal stands.

ADAMANTE acoustic load principle is similar as the one used on ONIRA and ENIGMA. It’s an hybrid load, mixing an acoustic line and a bass-reflex. Thanks to its wide diameter, the port tube placed beneath the loudspeaker, reduces air flow noise, improves room interaction and lowers non-linearity.

original solutions

Internal damping combines original solutions and a mixture of four different materials to cancel any standing waves.

The ADAMANTE uses two 18 cm (6.5’’) bass/mid range drivers. These two drivers are similar to those used on Onira, but with deep modifications. Improvement on the magnet assembly with reduced distortions. Improvement in mechanical damping, and electro-magnetic field interferences. The cone material is still “Isotactic Matrix”. A new type of composite material based on woven polypropylene. This cone material exhibits stiffness, lightness and good damping properties.

the piano with the design philosophy of the speaker

The implementation of an original loading architecture brings the benefit of a real synchronized operation of the two mid-woofers. This is mostly not the case with common design using similar drivers in a single load.

“DRIM” crossover technology

The high frequency drive unit is a professional ribbon tweeter. It uses an aluminum/ polymer sandwich diaphragm for improved linearity. The ribbon is mechanically held tight on both sides to avoid oscillations on some specific signals. The drive unit effective piston area is twice as the Onira one’s, and four times the area of ordinary dome tweeters, for a moving mass of only 88mg.

This wide emissive surface combined with Christian Yvon crossover technology, allow an unusual low cutting frequency. This way we can spread the well-known sound qualities of ribbon tweeter over a wider frequency range.

The “DRIM” crossover technology used in Apertura products allows a minimum intermodulation and respect of time alignment. This filter technology has an ellipse on one of its branches, with three different slopes: 6dB, 12dB and 24dB per octave. Low-pass and High-pass circuits are independent. Hand wiring on high power Pcb (210µm copper thickness), with no less than thirty seven high end components per speaker.

music lovers

Musically speaking, we recognize Onira qualities with significant improvements. Heavier foundation, more precision and refinement. Combined with the most musical electronics, Adamante will offer a new listening delight experience to music lovers

SPECIFICATIONS
Frequency range	32-30 000Hz/ +-3dB
Sensitivity	93dB/2,83v/1m
Impedance	4 Ω
Load	Hybride => Bass-Reflex / Acoustic line
Drive units	2 x 18 cm Isotactic Matrix cone Bass/Mid range unit, 15 x 145 cm ribbon tweeter
Crossover frequency	1,8kHz, “DRIM structure” : 2 separate circuit boards for high and low frequencies
Terminals	single wire binding posts (bananas or spades)
Dimensions (W x D x H)	220 x 353 x 1150 mm (W x D x H), with metal stands : 360 x 391 x 1211 mm
Weight	52 kg net – 61 kg shipping weight
