Our new X-A220EVO monophonic power amplifier delivers 220W (at 8 ohms).
A pair of X-A220 Evo units combined with the X-P700 preamplifier form an extremely musical Hi-Fi system.
X-A220 EVO
POWER AMPLIFIER
Mono power block for high-end Hi-Fi configurations
most audiophile design
Our technical expertise combined with the most "audiophile" design of our circuits enables us to achieve top-level performance at a competitive price.
successful aesthetics

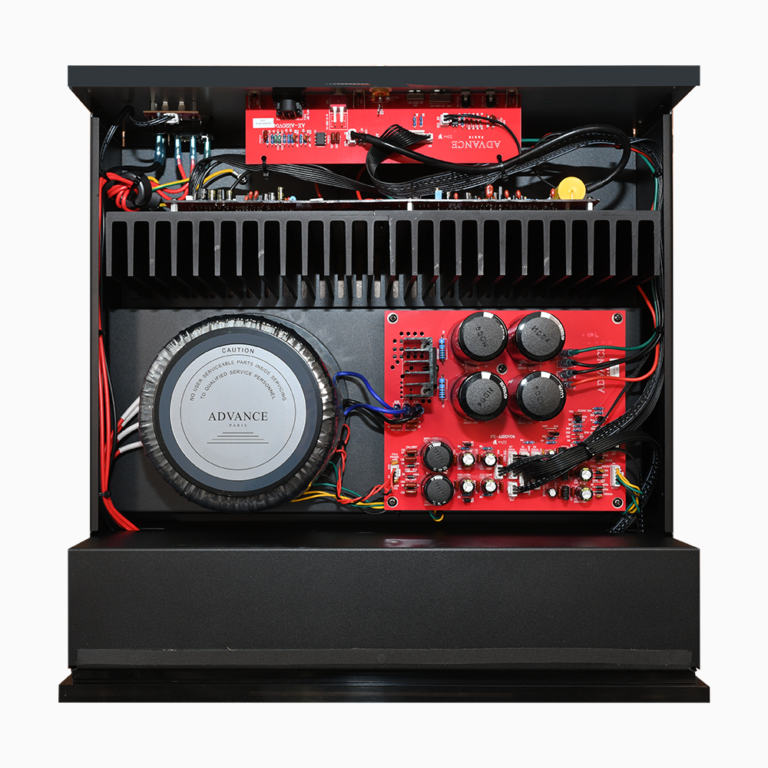

Construction: The steel frames are impeccably finished. The addition of methacrylate fronts enhances their successful aesthetics, while adding an important ergonomic dimension, thanks to an imposing vu-meter. The interior layout is rational and compartmentalized. This judicious arrangement of the various sub-assemblies is accompanied by a choice of quality components, soldered on separate PCBs and partitioned by function.
delivers the most demanding dynamics
The X-A220EVO owes its thickness to the height of its generously dimensioned power transistor heatsink.
The X-A220EVO features a 700 VA toroidal transformer. After rectification, four 10,000 µF / 80 V capacitors smooth the DC current. The power stages call for a triple push-pull of complementary NJW0281G / NJW0302G transistors, delivering up to 220W (8 ohms) in class AB.
High Bias function is engaged
The amplifier can operate in two modes, accessed via a switch: when the High Bias function is engaged, the X-A220EVO operates in "class A" on the first Watt, then automatically switches to class AB.
Specifications
| Amplifier Section | |
|---|---|
| Audio Specifications | |
| Output power 8 | 1 x 220 W RMS |
| Output power 4 | 1 x 350 W RMS |
| Bandwidth | 10 Hz - 80 kHz |
| Distortion | < 0.08% |
| Signal-to-noise ratio | > 100 dB |
| Channel separation | > 80 dB |
| Input impedance Unbalanced | 32 KΩ |
| Input impedance Balanced | 38 KΩ |
| Mains voltage | 115-230V |
| Standby power consumption | <0,5W |
| Max. power consumption | 500W |
| Transformer power | 700W |
| Transformer | Toroidal |
| Dimension (W×H×D) | 200 x 430 x 450 mm; |
| Weight | 21 kg |
| VU-Meter | Yes |
| Product type | Power block |
