AVAYESYMPHONY


SIGNATURE

Supremus Zr

SPEAKER CABLE

Signature Supremus Zr

  • Zirconia Airloc™ design: NEW hard-wearing zirconia barrels and boots offer durability and resistance to performance-affecting eddy currents, in one lustrous-looking material.
  • Cold weld system: unifies the conductors and plug components for a lifetime of perfect functionality.
  • Rhodium-plated locking design: ensures optimal contact between a speaker binding post and the cable plug for a maintenance-free connection.
  • Aircore technology: delivers an even, consistent performance across the entire audible frequency range.
  • 6.2 mm² ultra-low resistance conductors: effectively allows your amplifier to exert complete control over your speakers.
  • Cryogenic treatment: ensures a perfect cable microstructure for more natural tonality.

Supremus Zr

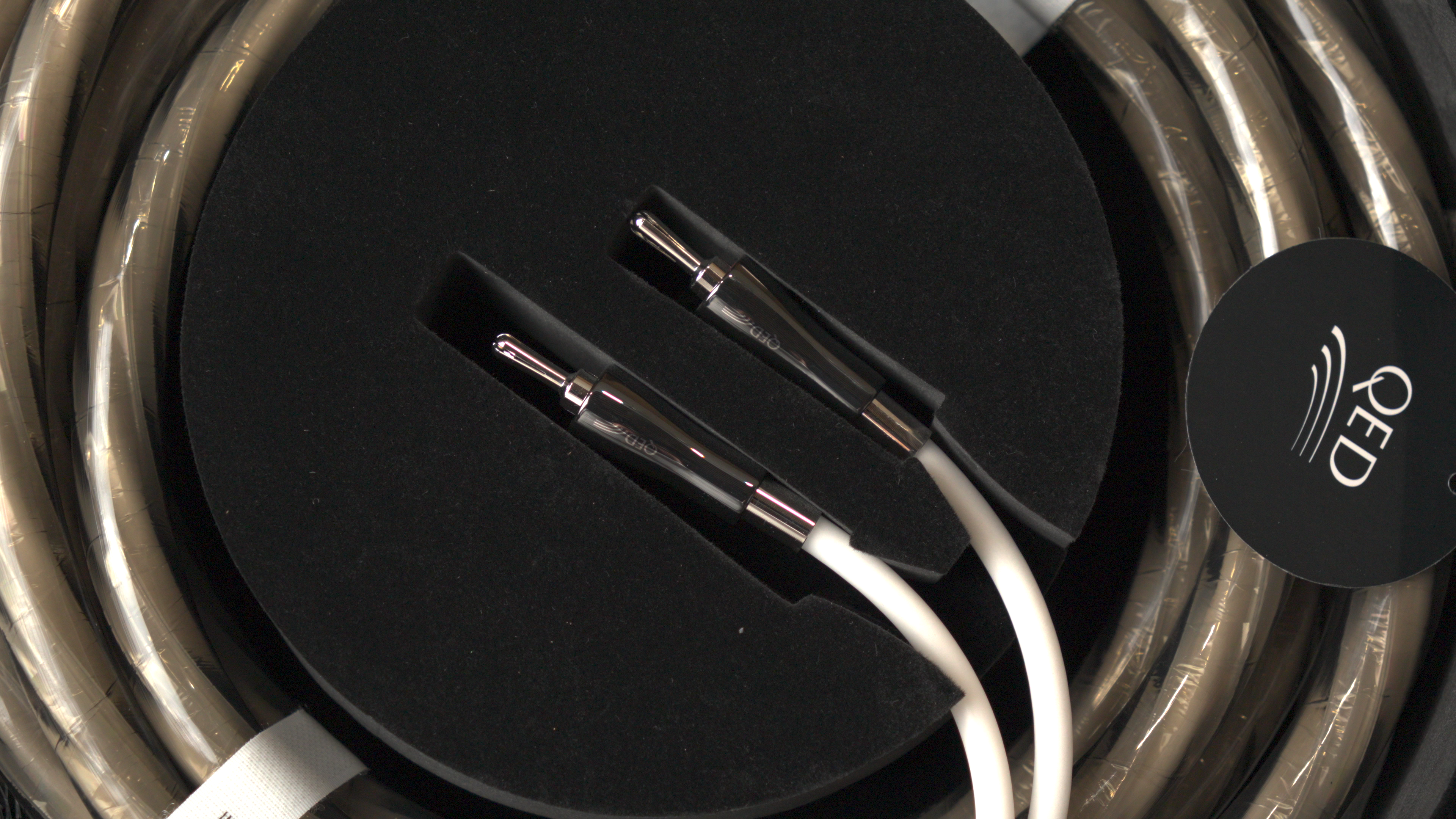

Supremus Zr is the result of more than five decades

Supremus Zr is our next-generation flagship loudspeaker cable. Developed without compromise, Supremus Zr is the result of more than five decades of technological evolution and refinement.

Featuring leading-edge QED audio innovations, the new Zr model now boasts high-quality zirconia plugs and barrels. Used in watches and fountain pens and in automotive and aerospace industries, this advanced ceramic material is prized for its durability and high resistance to wear, temperature and eddy currents. Its lustrous surface also adds a luxury finish to the cable.

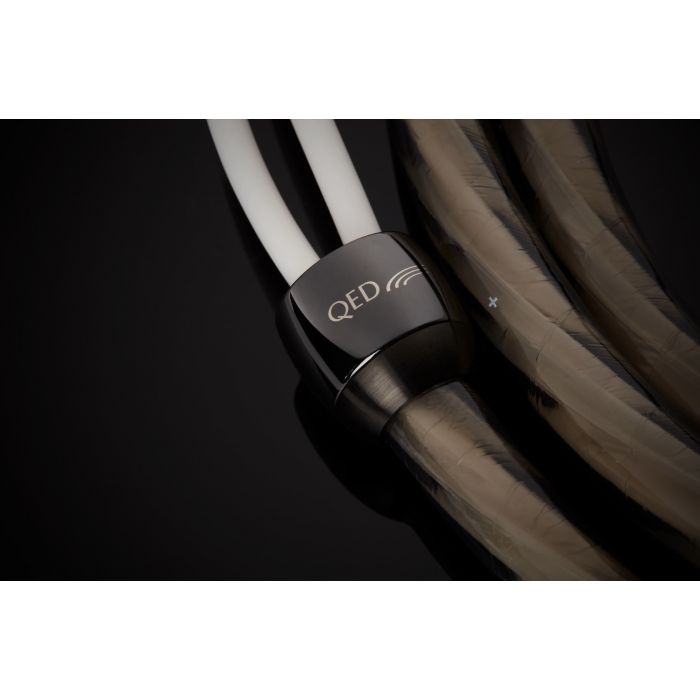

Introducing generation c

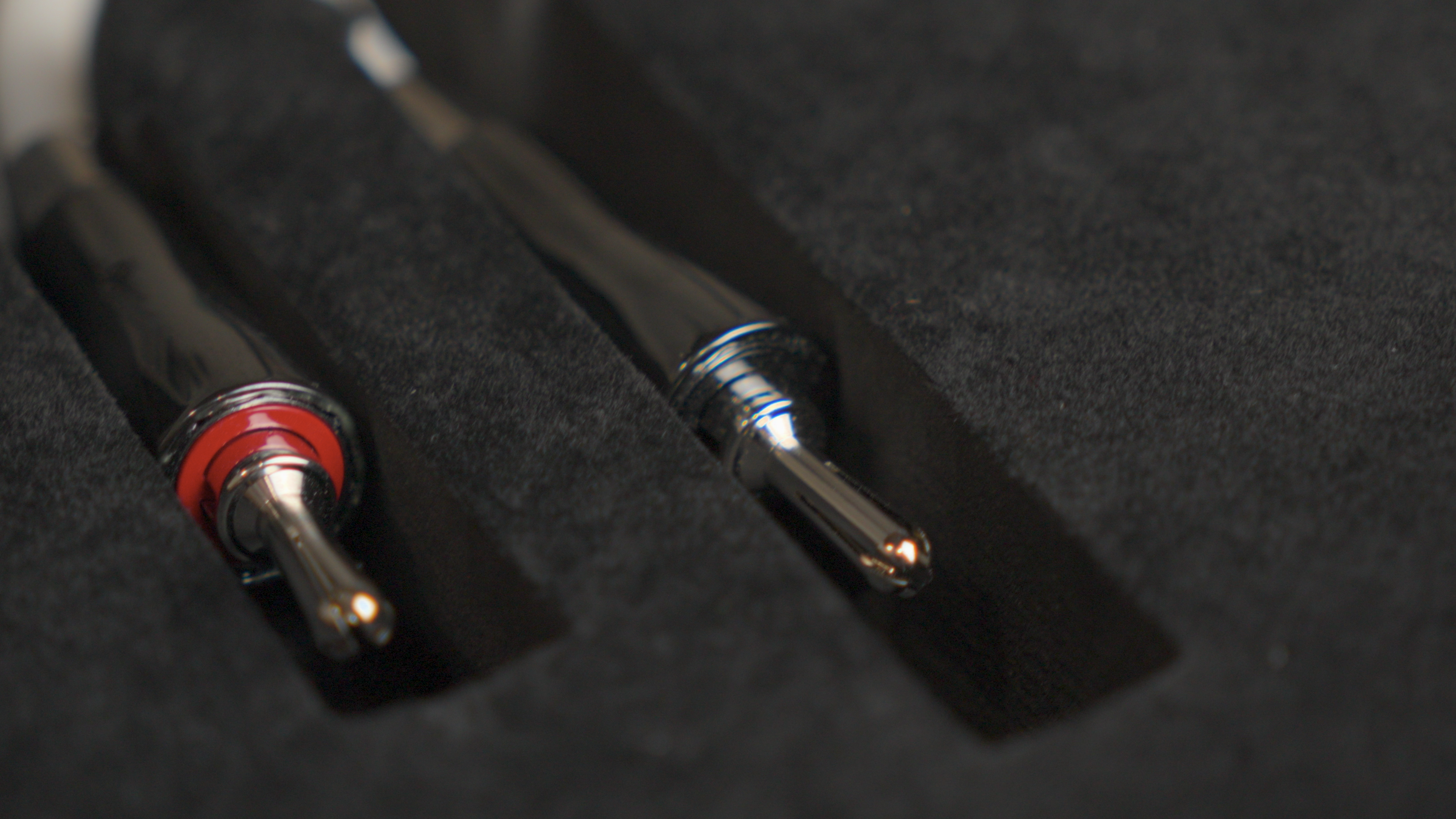

Genuine innovation

Genuine innovation

In conjunction with QED’s Aircore™ and Airloc™ technologies and a host of other cutting-edge designs, Supremus Zr represents the most effective way of preserving the integrity and fidelity of the analogue music signal from beginning to end that QED has ever achieved.

Zirconia Airloc™ Design

Zirconia Airloc™ Design

The exceptionally high mechanical strength of zirconia, its remarkable resistance to scratches and general wear, and its glossily lustrous finish, make it the ideal material for this cable’s barrels and boots. Not only are the Supremus Zr plugs gleaming and tactile, the electrically inert nature of zirconia also means eddy currents cannot become established and therefore plug-induced distortion remains vanishingly low.

Airloc™ Cold Weld System

Our high-pressure termination process compresses the conductors and plug together, creating a cold-welded area where conductors and plug effectively become one. Because all the air has been removed from the joint, there can be no oxidisation or degradation in conductivity - and that’s true for the entire lifetime of the cable.

Rhodium-plated Locking Design

Aside from its purely decorative properties - which are considerable - rhodium makes the surface of the Supremus Zr connectors very smooth, increasing the contact area and reducing resistance. Designed specifically for Supremus Zr cable, this unique contact expansion system securely clamps the rhodium-plated beryllium copper pins into the speaker terminals, while at the same time increasing the contact area of the plugs, simply by twisting the plug barrel until it is tight. And because it’s so very hard-wearing and resistant to oxidisation, rhodium can cope with the extra load exerted by our locking design - which ensures a perfect, maintenance-free connection.

Aircore™ Technology

Loudspeaker cables with large cross-sectional areas are prone to skin effect, where high-frequency analogue music signals are forced to the outside of the conductor, and proximity effect that disrupts current distribution. QED’s innovative Aircore technology combines hollow tubular conductors - to minimise the skin effect - with polyester insulation and a special spiral construction to reduce the proximity effect. This highly effective combination evens out current density and significantly improves the cable's uniformity throughout the audio band.

6.2 mm² Ultra-low Resistance Conductors

Boasting a large cross-sectional area, the ultra-low resistance, silver-plated, oxygen-free copper conductors effectively bring the amplifier electrically much closer to the loudspeakers, enabling it to exercise better control over them, so the fidelity of the original music signal can be more accurately maintained.

Cryogenic Treatment

Cryogenic treatment improves the microstructure of the copper core by eliminating crystalline dislocations. Numerous brass musical instruments at all points of the frequency range have been found to produce a better, more natural tone after deep cryogenic treatment.

SPECIFICATIONS
CROSS-SECTIONAL AREA6.2 mm2
WIRE GAUGE10 AWG
Outside diameter17 mm
LOOP RESISTANCE0.005 Ω/m
WIRE GAUGE10 AWG
Loop resistance0.005 Ω/m
Parallel capacitance48 pF/m
Loop inductance0.49 μH/m
Dissipation factor0.009
TechnologyQED Aircore™; cryogenically treated; QED Airloc™
Conductors32 solid core, silver-plated, 99.999% oxygen-free, polyester coated copper
DielectricFoamed polyethylene, LDPE, and air
PlugsRhodium-plated, locking Airloc plugs with zirconia barrels

WHAT THIS CABLE IS USED FOR

CONNECT YOUR:
AV Amplifier
Receiver
Hi-fi
Stereo Amplifier
TO YOUR:
Speakers
Hifi Critic Audio Excellence logo

Hifi World logo

Download
QED Brochure - Speaker Cable
